D
B
$45^{\circ}$
$2\sqrt{3}$

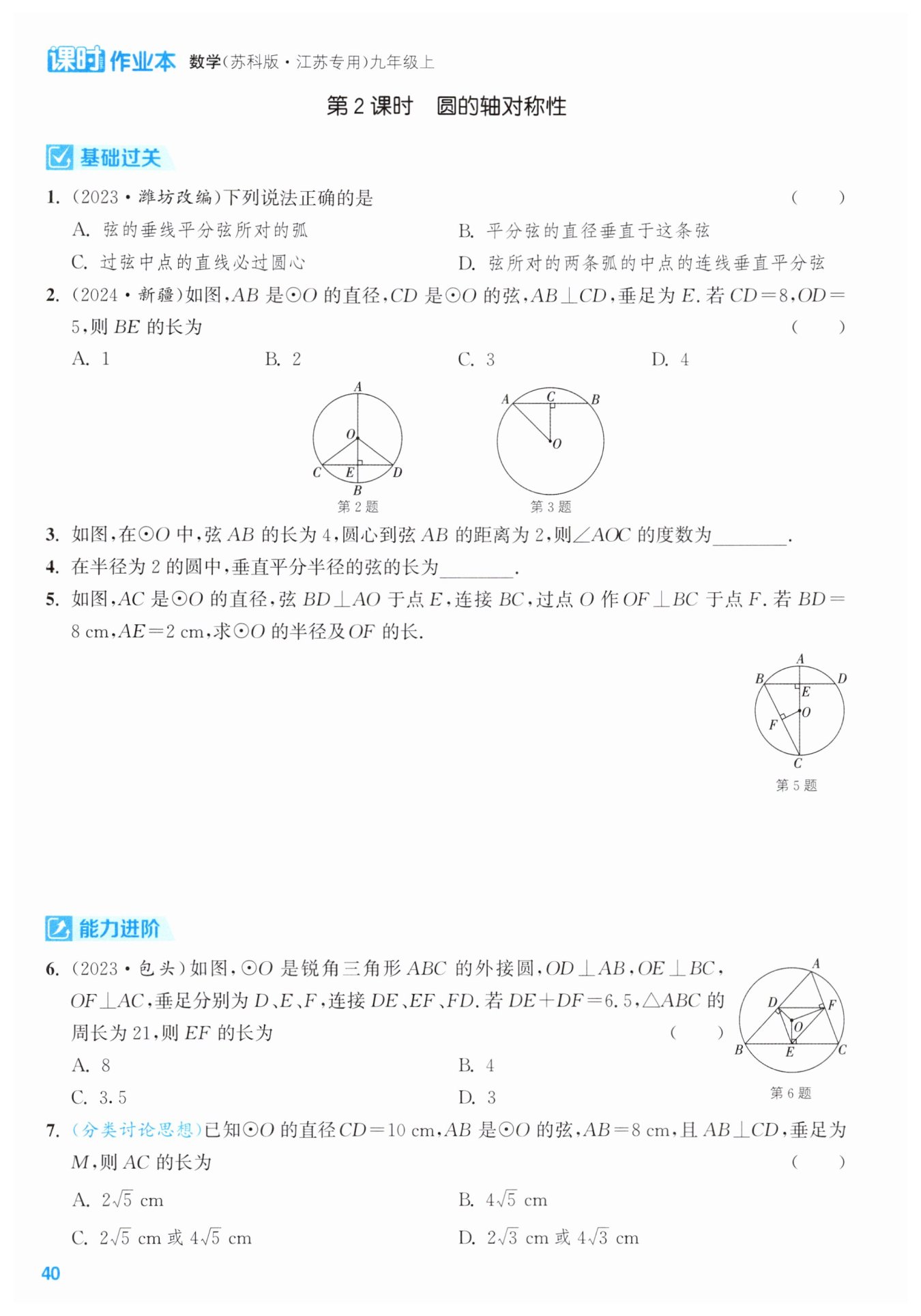

解:连接​$OB.$​
∵​$AC$​是​$\odot O$​的直径,弦​$BD\perp AO$​于点​$E,$​​$BD = 8\ \mathrm {cm},$​
∴​$BE=\frac {1}{2}BD = 4\ \mathrm {cm}.$​
设​$\odot O$​的半径为​$x\mathrm {cm},$​
则​$OB = OA = x\mathrm {cm},$​​$OE=(x - 2)\mathrm {cm}.$​
在​$Rt\triangle OEB$​中,由勾股定理,得​$OE^2+BE^2=OB^2,$​
即​$(x - 2)^2+4^2=x^2,$​
​$ $​展开式子得​$x^2-4x + 4+16=x^2,$​
​$ $​移项可得​$-4x=-20,$​
​$ $​解得​$x = 5.$​
∴​$\odot O$​的半径为​$5\ \mathrm {cm},$​
∴​$EC=2×5 - 2 = 8(\mathrm {cm}),$​
∴在​$Rt\triangle BEC$​中,​$BC=\sqrt {BE^2+EC^2}=\sqrt {4^2+8^2} = 4\sqrt {5}(\mathrm {cm}).$​
∵​$OF\perp BC,$​​$OF{过圆心},$​
∴​$CF=\frac {1}{2}BC = 2\sqrt {5}\mathrm {cm},$​
∴在​$Rt\triangle OFC$​中,​$OF=\sqrt {OC^2-CF^2}=\sqrt {5^2-(2\sqrt {5})^2}=\sqrt {25 - 20}=\sqrt {5}(\mathrm {cm})$​
B
C
